February 9, 2011I need help I wired up some fog lights on my truck. It has a Inline fuse I put on. I was wondering where can I tap into for power. If I hook up to the battery will the light on the switch constintally stay on?? Will it kill the battery if that stays lit up while The truck is off? I only want the switch to be hot when the key is on if it will draw some power.. If it won`t draw power I could care less anyone want to throw me some tips please!
February 9, 2011Do you have a relay hooked up or are you just running a + and - wire to the switch???.....johnB
February 9, 2011This is where my inline fuse is hooked up to in my dash fuse box. The first is an overall view, the second is a close up view.
Life is looked upon differently, when someone in your family passes
February 9, 2011Just + and - and i guess it would be called the remote wire too..... It is the wire that sends the power to the lights. Is that terminal you have yours hooked up to hot while The key is off? What is it anyway???

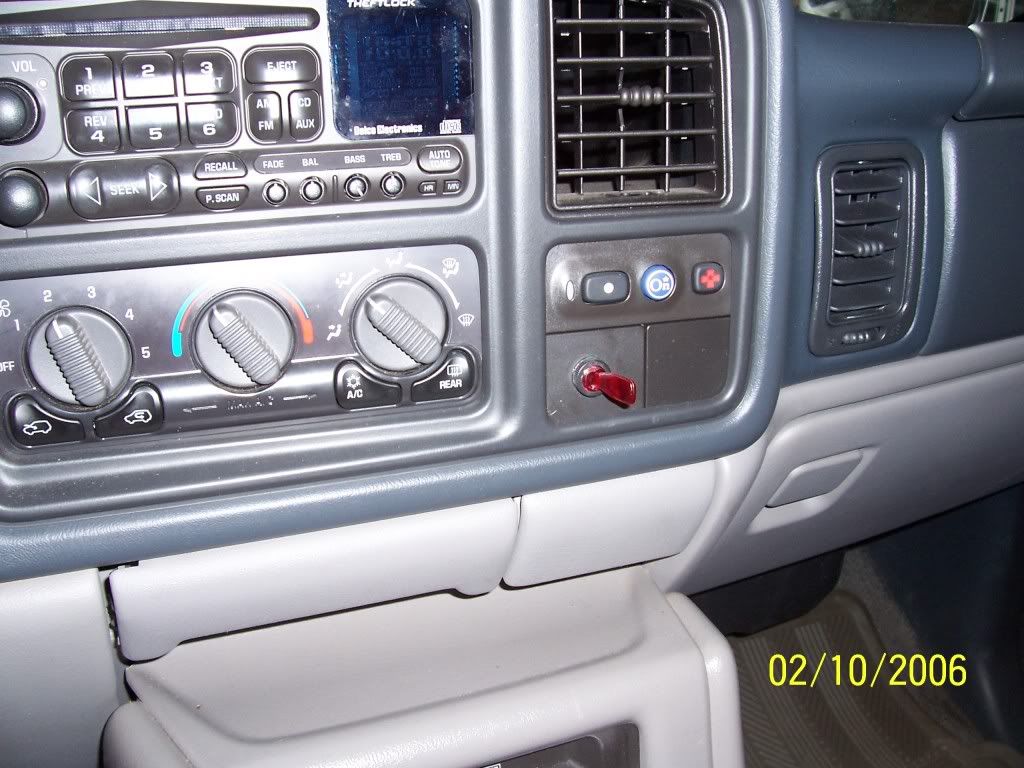

February 9, 2011I wanted to use a relay for my KC Daylighters, but I also wanted to keep it simple. The relay is under the hood so I only needed short lengths of fat wire (150W lights), and I only had to run one small wire into the interior. For power to the lights, I tapped the main power wire underneath the load center.

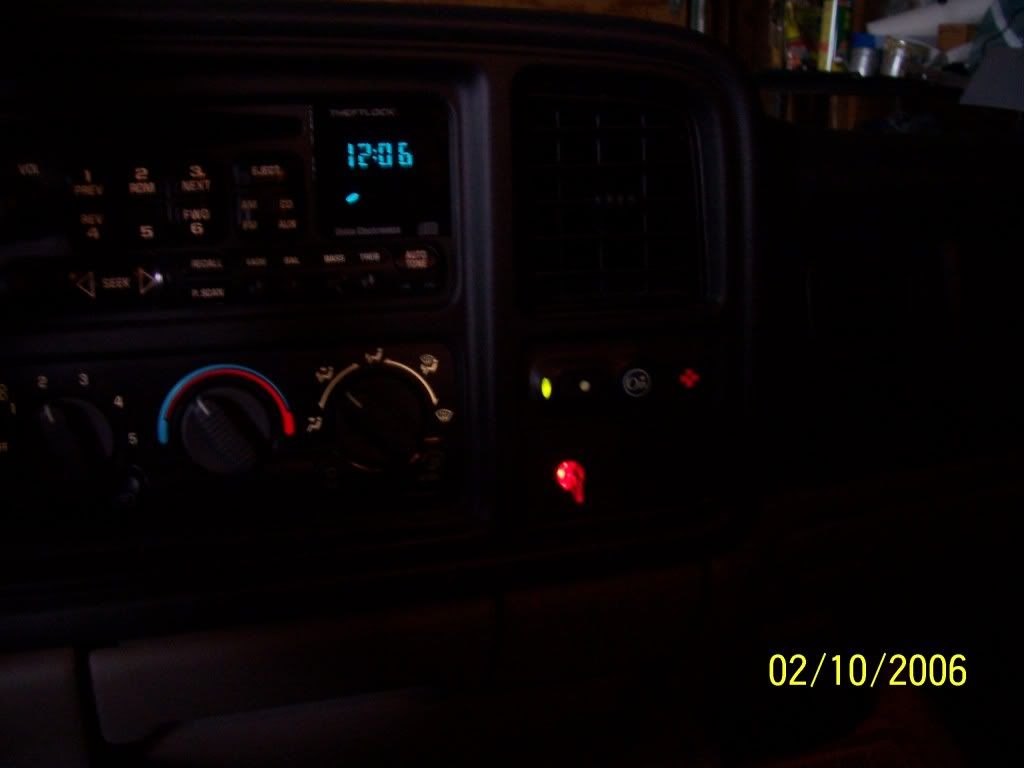

I tapped the radio power wire to feed my switch to trigger the relay. This way, my lights (and the lighted switch) are controlled by the ignition switch.
February 11, 2011Figured mine out my buddy when we where testing for key hot fuses to tap into pulled the One out and put it in the next one up.. It still made sense is the chevy diagram so I never noticed it. Also my switch was bad as well. Worked opposite of how it should and yes I tried wiring it the opposite way and if I did it didn`t work at all... Now I have High Lows and Fogs all HIDs it`s bright as he`ll
